| Place of Origin: | China |
|---|---|
| اسم العلامة التجارية: | South |
| Model Number: | NTS-362R |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | with standard exporting package |
| Delivery Time: | within 3-5work days after the goods are paid . |
| Payment Terms: | TT ,western Union |
| Supply Ability: | 10000 Per Year |
| إبراز: | robotic total station,manual total station,manual total station |
||
|---|---|---|---|

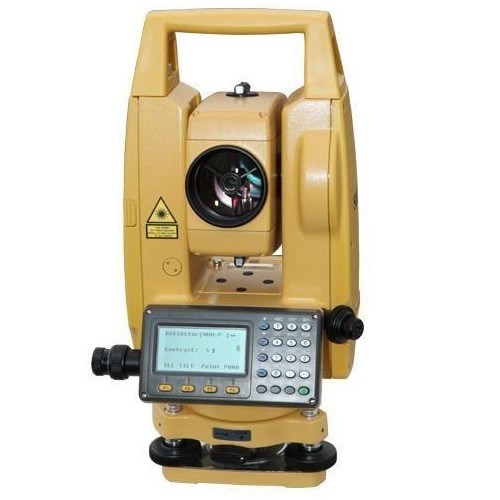

South Total Station NTS-362R Reflectorless Total Station
Quick Details
Place of Origin:China (Mainland)
Brand Name:SOUTH
Model Number:NTS-362R
Reflectorless:300m
With single Prism:5km
Measuring method:absolute encode
Accuracy:2mm+2ppm.D
measuring time:Fine mode:1.2S;Tracking mode:0.5s
Specifications
Absolute Encoding Disk;
Six-line large LCD;
Dual Axis Compensation;
SD card Function and USB interface;
Different Main Board
NTS-362R | |||
Telescope: | |||
Image | Erect | ||
Magnification | 30× | ||
Effective aperture | Telescope:45mm(EDM:50mm) | ||
Resolving power | 3″ | ||
Field of view | 1°30′ | ||
Minimum focus | 1m | ||
Tube length | 154mm | ||
Angle Measurement | |||
Measuring method | absolute encode | ||
Dia of circle(vertical, horizontal) | 79mm | ||
Minimum reading | 1″ 5″Selectable | ||
Detection method | Horizontal: Dual Vertical: Dual | ||
Accuracy | 2″ | ||
Distance Measurement: | |||
Max. Range | single prism | 5km | |
Reflectorless | 300m(object in shade,or sky overcast) | ||
Displaly | Max:99999999.9999m Min:0.1mm | ||
Unit | m/ft | ||
Accuracy | Reflectorless | Fine | ±(5mm+2ppm·D) |
Tracking | ±(10mm+2ppm·D) | ||
Reflector | Fine | ±(2mm+2ppm·D) | |
Tracking | ±(5mm+2ppm·D) | ||
IR sheet | ±(5mm+2ppm·D) | ||
measuring time | reflectorless | Fine mode:<1.2S;Tracking mode:<0.5s | |
reflector | Fine mode:<1.2S;Tracking mode:<0.5s;IR sheet mode:<1.2S | ||
Atmospheric correction | Auto correction ,manual input | ||
Atmosphericrefraction and earth curvature correction | Auto correction ,manual input | ||
prism constant correction | Auto correction ,manual input | ||
Vial | |||
Plate vial | 30″/ 2mm | ||
Circular vial | 10′/2mm | ||
Auto Vertical Compensator | |||
Type | Dual axis Liquid-electric | ||
Compensation range | ±3′ | ||
Accuracy | 3″ | ||
Optical Plumment | |||
Image | Erect | ||
Magnification | 3× | ||
Focusing range | 0.5m~∝ | ||
Field of view | 5″ | ||
On-board Battery | |||
type | Ni-H ,Rechargeable | ||
Voltage | DC 6V | ||
Continuous operation time | 8 hrs | ||
Others | |||
Display | LCD, 6 lines ,digital | ||
Data Communication | RS-232C,USB,SD | ||
Operating temperature | -20°~+45ºC | ||
Dimension | 160×150×330mm,5.2kg | ||
