| Place of Origin: | China |
|---|---|
| اسم العلامة التجارية: | Nikon |
| Model Number: | DTM352 332 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | with standard exporting package |
| Delivery Time: | within 3-5work days after the goods are paid . |
| Payment Terms: | TT ,western Union |
| Supply Ability: | 10000 Per Year |
| إبراز: | reflectorless total station,robotic total station,robotic total station |
||
|---|---|---|---|

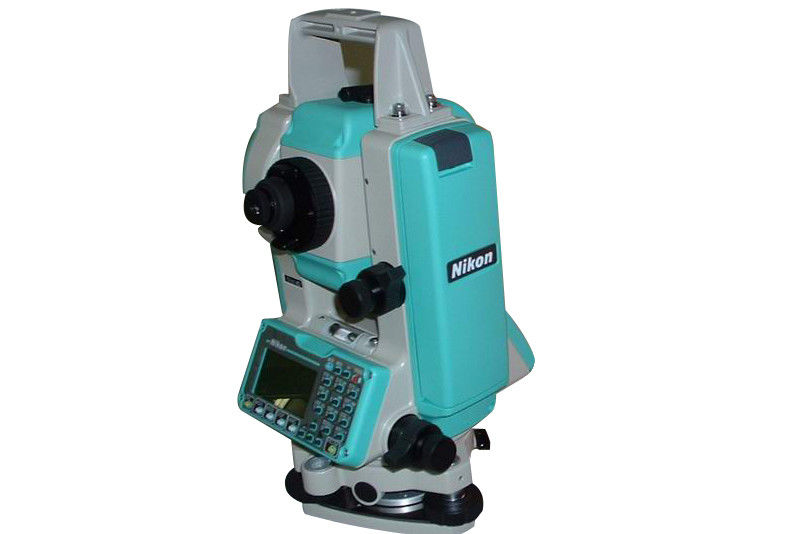

Total Station Nikon DTM 352 332 series
±(3+2ppm x D)mm distance measurement accuracy
Same distance accuracy for both Prisms and Reflector Sheet
Just 1.6 sec. measuring time with 1mm distance resolution
5-second angle measurement accuracy
Quick and convenient feature code input system
USR user defined keys set as “ONE-TOUCH access” keys to your preferred functions
User customizable feature code list
First, on-site setting change capability
Feet & Inch input and display
A special version of the DTM-352 that allows operation at extremely low temperatures down to –30°C is available.
SPECIFICATION :
|
Model |
DTM-362, DTM-352, DTM-332 |
|
Tube Length |
158mm/6.22 in. |
|
Magnification |
33x (21x/41x with optional eyepieces) |
|
Effective diameter of objective |
45mm/1.77 in. (EDM: 50mm/1.97 in.) |
|
Field of view |
1°20’ |
|
Resolving power |
2.5” |
|
Minimum focusing distance |
1.3m/4.26 ft. |
|
Range with Nikon specified prisms |
|
|
Normal conditions |
(Ordinary haze, visibility approx. 20km/12.5 miles) |
|
With reflector sheet |
5 to 100m (16.4 to 328 ft.) |
|
With mini prism |
1,000m/3,280 ft. |
|
With single prism |
2,000m/6,560 ft |
|
With triple prism |
2,600m/8,530 ft. |
|
Good conditions |
(No haze, visibility of over 40km/25 miles) |
|
With mini prism |
1,200m/3,930 ft. |
|
With single prism |
2,300m/7.540 ft. |
|
With triple prism |
3,000m/9,840 ft. |
|
Accuracy (Prism/Precise mode) |
±(3+2ppm x D)mm (–20°C to –10°C, +40°C to +50°C |
|
Measuring interval*1 |
|
|
Precise mode |
1.6 sec. (initial 1.6 sec.) |
|
Normal mode |
1.0 sec. (initial 1.4 sec.) |
|
Least count |
|
|
Precise mode |
1mm/0.002 ft. |
|
Normal mode |
10mm/0.02 ft. |
|
Ambient temperature |
–20°C to 50°C/–4°F to +122°F |
|
Atmospheric correction |
|
|
Temperature range |
–40°C to 60°C/–40°F to +140°F |
|
Barometric pressure |
400 to 999mmHg/533 to 1,332hPa/15.8 to 39.3 in.Hg |
|
Prism offset |
–999 to 999 |
|
Angle measurement |
|
|
Reading system |
Photoelectric detection by incremental encoder |
|
Horizontal angle |
Diametrical(DTM-362/352), Single(DTM-332) |
|
Vertical angle |
Single |
|
Minimum increment |
Degree: 1/5/10”, Gon: 0.2/1/2mgon, MIL6400: 0.005/0.02/0,05mil |
|
DIN 18723 accuracy |
5”/1.5mgon (3”/1.0mgon:DTM-362) |
|
Tilt sensor |
|
|
Type |
Dual-axis(DTM-362/352), Single-axis(DTM-332) |
|
Method |
Liquid-electric detection |
|
Compensation range |
±3' |
|
Setting accuracy |
1" |
|
Level vial |
|
|
Plate level vial |
30"/2mm |
|
Circular level vial |
10'/2mm |
|
Optical plummet |
|
|
Magnification |
3x |
|
Focusing range |
0.5m/1.6 ft. to ∞ |
|
Display |
Graphic LCD (128 x 64 dot) Single side(DTM-332) |
|
Point memory |
10,000 records |
|
Dimensions (W x D x H) |
168 x 173 x 335mm/6.6 x 6.8 x 13.2 in. |
|
Weight (approx.) |
|
|
Main unit (with battery) |
5.3kg/11.7 lbs.(DTM-362/352), |
|
Battery |
0.4kg/0.9 lbs |
|

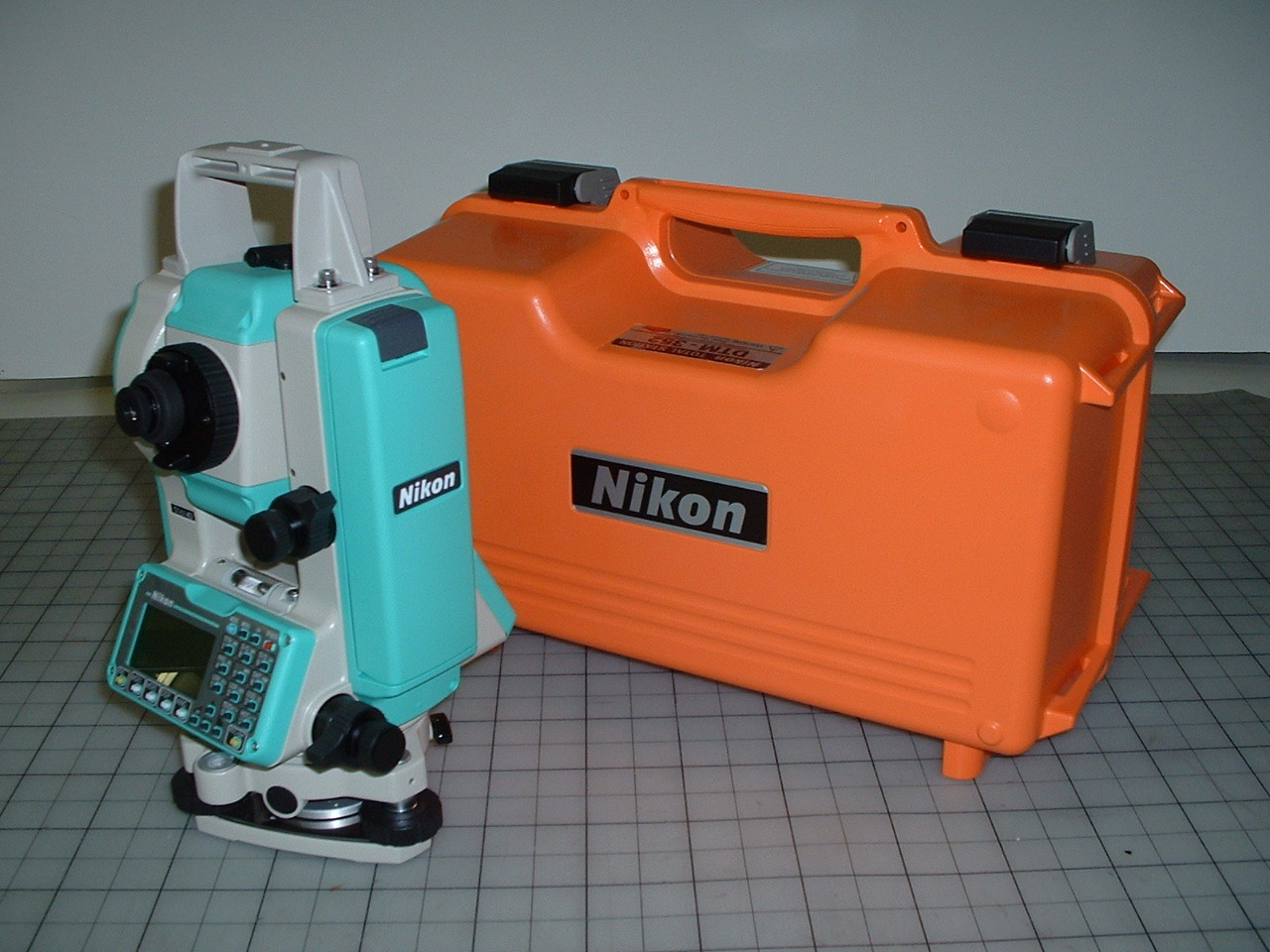

Carrying case |
2.4kg/5.3 lbs |
|
On-board Ni-MH battery |
|
|
Operation time |
|
|
Continuous distance/angle |
Approx. 16 hours*3 |
|
Distance/angle |
Approx. 27 hours |
|
Angle measurement |
Approx. 30 hours |
|
Battery charger for BC-80/65 |
Approx. 2.0 hours for full recharge |
|
Quick charger Q-70C (12V DC cigarette lighter charger) |
Approx. 2.0 hours (fully discharged BC-65 requires more than one charge) |
